Trencher Attachment

Trencher Attachment

March 12, 2012


Skid-steers/construction Attachments

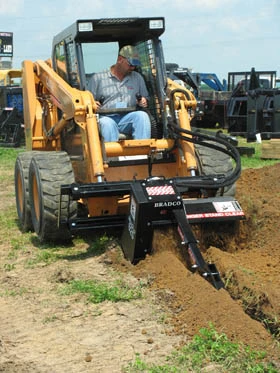

A complement to compact and standard skid-steer loaders or tractors, the full Bradco trencher line includes the Bradco 330, 612, 615, 615F, 625 and 640. Choose from cutting depths that range from 24 inches up to 60 inches and cutting widths of 3 inches up to 12 inches. Both standard and high flow models are available.

The entire Bradco Trencher line provides several tooth options, including cup, shark and rock & frost teeth, so you can meet your job’s individual requirements. A discharging auger neatly places dirt away from the trench to eliminate refilling. For jobs that require close proximity to buildings, fences, walls and other obstacles, the Bradco 615F Trencher’s offset auger discharges the dirt to one side away from the trench. Each trencher utilizes a fixed-length boom with a spring-loaded, self-adjusting idler and full rock guard to provide added durability and safety during trenching. A heavy-duty crumber and safety bar also provide better trenching precision, while minimizing flying debris. Every Bradco Trencher comes with a 2-year limited warranty.

The Bradco 615, 615F, 625 and 640 Trenchers are designed to fit compact and standard skid-steer loaders. Each offers tooth pattern versatility and uses a rugged 50,000 pound anti-back-flex chain for extended life in the toughest of soil conditions and applications with small rocks. Multiple motor options are available to match the flow and requirements of various skid-steer loader models and manufacturers.

The Bradco 330 and 612 Trenchers are designed to mount on a tractor’s 3-point hitch and are PTO driven. The PTO shaft drive has a heavy-duty slip clutch that protects against overloading and excess maintenance costs. The Bradco 330 uses a 38,000 pound anti-back-flex chain that is ideal for medium-hard soil conditions, while the Bradco 612 utilizes the same 50,000 pound anti-back-flex chain as the skid-steer loader models for more rugged conditions.
