MH60D mulching head

MH60D mulching head

October 23, 2018

John Deere

http://www.johndeere.com
Skid-steers/construction Attachments

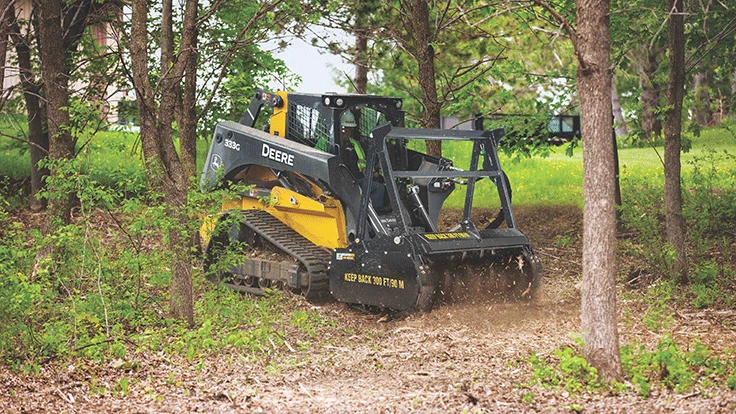

John Deere's MH60D mulching head is the latest addition to the Worksite Pro lineup.

Designed to remove 8-inch (203-mm) trees and 12-inch (305-mm) stumps with ease, the MH60D model shreds underbrush and woody materials into mulch in minutes. Like all Worksite Pro attachments, this mulching head is optimized to work with John Deere skid steer loaders and compact track loaders, as well as most competitive models.

  • 30 double-carbide tipped teeth
  • The MH60D also works well below soil level for chewing out difficult stumps.
  • A two-speed hydraulic system efficiently uses available horsepower. When the preset pressure level is attained, the motor automatically shifts to a higher displacement, increasing torque for reduced stalling and faster rotor-speed recovery time.
  • A prominently positioned pressure gauge allows operators to easily monitor hydraulic operating pressure.
  • A 1,524-mm (60-inch) high-capacity, smooth rotor design reduces material drag and horsepower requirements.
  • Oversized 64-mm (2.5-inch) sealed rotor bearings deliver long-term durability.
  • A redesigned mulching chamber enables more efficient material flow and reduces wear points for optimized shredding performance.
  • Internal counter-combs help shatter incoming material, creating finer mulch.
  • Optional knife tools allow smoother cutting and finer chip size.
  • For added durability, the attachment’s three-position heavy-duty push bar helps protect the carrier while toppling tree or brush.
  • The door cylinder inside the frame body is better protected, while the enhanced frame construction and bolt-on skid shoes reduce debris buildup, extending wear life.

Visit JohnDeere.com for more info.
