ASV introduces new radial-lift CTL

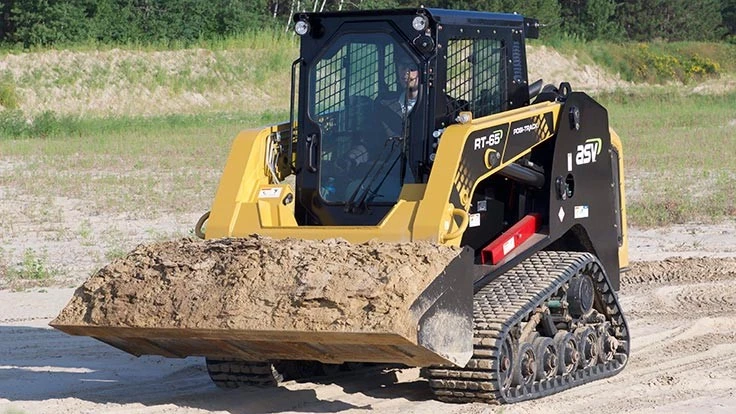

GRAND RAPIDS, Minn. – ASV Holdings introduced the new radial-lift RT-65 Posi-Track compact track loader. The CTL is designed for digging and ground engagement work in construction, excavation, landscaping, snow-clearing and rental applications.

“The RT-65 is everything our customers look for in a compact track loader, including industry-leading serviceability, reliability and power,” said Justin Rupar, ASV Holdings vice president of sales and marketing. “We built the machine with unmatched ease-of-maintenance features that make operators’ lives easier. The machine also features a robust design and high performance so contractors can get their jobs done faster and with minimal downtime.”

The RT-65 service features include a swing-out radiator, top hood and side doors that allow access to all sides of the engine compartment, including filters and other daily checkpoints. The unit’s cooler swings out with the door, giving operators total access for easy cleaning and improved machine performance due to the cleaner cooler.

To speed the draining process, ASV includes drain plugs on all service items, including drive motors, the hydraulic tank, the radiator and the engine oil pan. The RT-65 features frame-mounted filters for single-wrench service. Zerk fittings on the end of all pins make greasing easier. In addition, the machine features a direct-drive pump, eliminating the need for belt servicing.

The RT-65 also includes steel sprocket rollers that are replaceable individually.

A turbocharged 67-horsepower Deutz 2.2-liter diesel engine produces 184 foot-pounds of torque that the drive motors transfer to ASV’s patented internal-drive sprockets. Internal rollers reduce friction loss in the undercarriage, resulting in maximum power being transferred to the track regardless of drive speed. The Tier 4 Final engine requires no regeneration, exhaust sensors or diesel exhaust fluid.

ASV built the RT-65’s auxiliary hydraulic system with 3,300 psi of auxiliary pressure and 22.2-gpm standard flow. The company also offers an optional 27.4-gpm high-flow system for more demanding attachments, such as trenchers, milling attachments, landscape rakes and augers. For efficiency, the hydraulic system features large line sizes, hydraulic coolers and direct-drive pumps, transferring more flow and pressure directly to the attachment.

The RT-65 features a rated operating capacity of 1,925 pounds and a tipping load of 5,500 pounds. It is 66 inches wide and has a 116.5-inch lift height. Standard joystick controls make operation easy and intuitive, while a self-leveling system allows attachments to stay at a set position while lifting. Operators can use the unit with all standard attachments.

ASV manufactures its loaders with its patented Posi-Track undercarriage. The system allows customers to use the RT-65 as an all-season, all-weather machine with maximum control, flotation, traction and pushing power in steep, wet, muddy and slippery conditions. The system features a flexible rubber track with internal positive drive sprockets to provide enhanced traction and track life.

The dedicated frame for the RT-65 results in a 12.9-inch ground clearance. This allows the unit to easily travel over logs, stumps, rocks and other obstructions with less risk of getting hung up. The purpose-built chassis also provides a 37-degree departure angle, decreasing the risk of the machine getting stuck when starting to climb a steep hill.

The RT-65 features a suspension system made up of two independent torsion axles per undercarriage for a smooth ride over every type of terrain and speeds as fast as 11 mph.

ASV customers can choose from several options to further improve the RT-65’s comfort and performance. Optional 16.5-inch-wide extreme terrain tracks lower the machine’s ground pressure to 3.9 psi while a smooth turf track allows minimal risk of damage during operation on highly manicured surfaces. Ride control is available to dampen the load in the bucket, limiting material loss and improving operator comfort. An optional bucket positioning system keeps the bucket level while lifting, reducing spillage. In addition, a suspended air ride seat contributes to additional comfort and a rearview camera and monitor boosts safety and visibility.
